Hi core Turbo Blower
-
HC-Series
The Highest Efficiency Turbo Blower / Turbo Compressor
Technology for human beings-produced by honest people
We will grow further into an honest company in the field of turbo blower/compressor
HC Series (Turbo Blower/ Compressor)
- Conventional turbomachines use accelerator gear and oil bearings to transmit power (turbo blower, turbo compressor), causing extreme noise and oil pollution. Hi-Core offers the Turbo Blower/Compressor (HC) Series that goes beyond the limits of these existing products.
- HC is a refueling/noise-free product that operates directly with a PM motor on shaft supported by air bearing
- Because electrical power is transmitted to the shaft without mechanical contact, the system efficiency is excellent and the durable life is semi-permanent
- Providing a clean working environment, saving energy
- Reduction in maintenance costs, small installation spaces, etc.
- High efficiency environmentally friendly energy machine (turbo machine)To implement the HC Series, the next generation turbo machine, we produce cutting edge technologies such as foil air bearing, PM motor & inverter, and AL7075 impeller
Turbo Blower Turbo blowers can dramatically reduce energy by using air bearings, high-efficiency impellers, and high-speed PM motors, improving economic effects and quality of the industrial environment.
-
- Type Blower: Centrifucal
- Matrial: Aluminium Alloy
- Motor: Permanent Magnet Motor
- Power Transmission: Direct drive
- Maxinum Flow: 300 m3/min
- Maxinum Pressure: 1.2 bar
- Bearing Type: Hydro dynamic Air Foil
- Noise: < 85 dB
- Vibration: Non
- Lubicant: Air ( Non-Oil)
PM Motor
- PM Motor (7.5kw-300kw)
- High efficiency PM Motor realizes higher efficiency (95% or more) than the operating range of the entire equipment.
- The product maximizes efficiency by dissipating much less heat than other products due to its
high-efficiency design and production.
- Sensorless TypeMortar Drive (Inverter) technology enables accurate control even in high temperature motor environments.
- High stability/ Minimization of maintenance costs
- Low noise no vibration.
Air foil Bearing
- No refueling air lubrication device
- By converting the air flow between the bearing and the shaft that occurs when the shaft rotates into compressed air, it supports the rotating shaft and also plays a role of lubrication.
- Theshaft rotates while rubbing against the air bearing, and wear-resistant coating is required on the shaft and bearing to prevent friction loss at this time.
- Special coating treatment to enable more than 20,000 starts and stops.
- Secure the design and manufacturing technology of the bump-type air bearing applied to large capacity (300kw or more) blowers and air compressors.
- No noise and ensures high system efficiency and semi-permanent durability.
Impeller
- High strength material suitable for high pressure
- With a wide operating range and sufficient pressure margin, surge stability is high
- Production of precision machine processing using forged materials (A7075-T651)
- Processed with a precision 5-axis machine to produce a very precise high-efficiency impeller
- Impeller and Shaft are directly connected, so the power transmission efficiency is 100%
Inverter
- VD-VECTOR DRIVE (7.5kw-800kw,200v/400v/690v/1140v)
- Choose the most optimized DRIVE for PM MOTOR
- Despite rapid load fluctuations, fast response speed
- Various general purpose inverters can be applied depending on customer specifications
- User-Friendly Graphic Control System (Touch Screen)
Product Application
- Environmental industry Water supply, sewage wastewater treatment plant, incinerator, sanitary treatment plant,etc. Air supply, backwash, separation of membrane.
- Agriculture/food etc.Transferring grain, drying, and transferring raw food ingredients. The fish farm's oxygen supply, manure treatment plant. Oxygen supply to activatemicroorganisms.
- Dishwashing Remove moisture from the inside and dry after washing the bottle
- Painting line Air supply of compressed energy for spraying
- Incinerator Combustion effect increased, gas exhaust increased
- Industry as a whole Cement, smelting and steel mills, petrochemicals, pulp, paper, etc. It's for transporting chips and powder ingredients
- Petroleum/chemical It's for transporting chips and powder ingredients
- Dry line
HC Series
- HC Series is easy to operate by installing touch screens.
- Equipped with a high-speed PM motor.
- Product performance guarantees through the performance test system
- Type Blower: Centrifucal
RELATED PRODUCTS

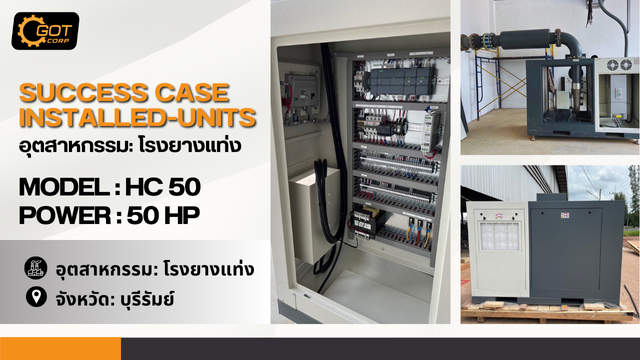

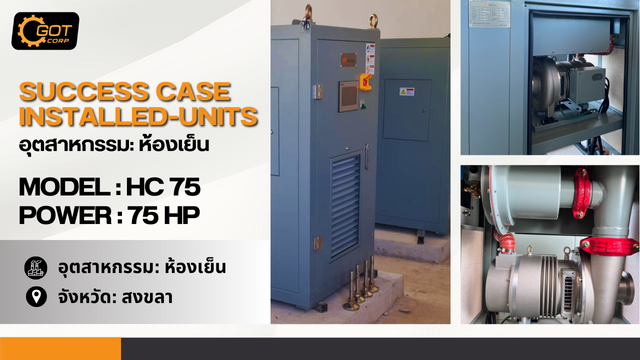

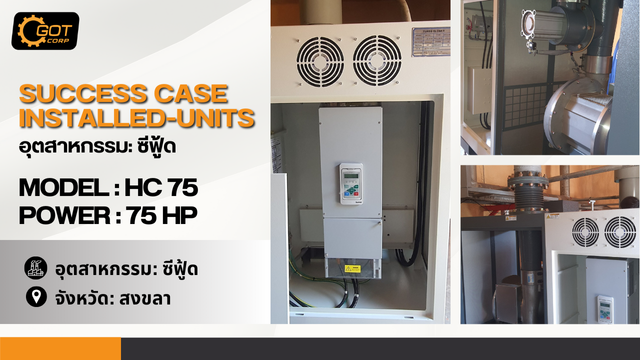

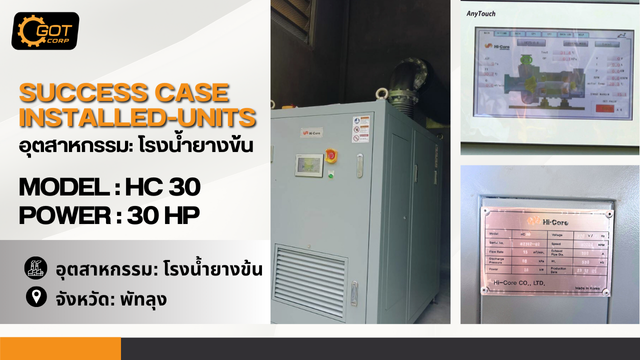

PRODUCT REFERENCE
